Example drywall & paint plan, start to finish
Hang, tape, finish and paint a room from bare studs. This is a real output from the drywall & paint calculator — nothing blurred, nothing withheld. Change any dimension and yours regenerates instantly. Estimates only, never a quote.
- Room
- 14×12 ft
- Ceiling
- 8 ft
- Net area
- 533 sqft
- Sheets
- 13 × 4x12
- Finish
- Level 4
- Paint
- 4 gal / 2 coats
Scaled diagram
How to read this: the drawing is to scale but not to the inch. Always measure your real site before cutting — these are estimates only, not a construction document.
Full shopping list
Drywall 4×12' 1/2" 13 sheet × $24 | $306 |
Joint compound (level 4 finish) 2 box × $19 | $38 |
Paper joint tape (250') 2 roll × $7 | $13 |
Drywall screws 1-1/4" (5lb) 1 box × $24 | $24 |
Metal corner bead (8') 5 ea × $8 | $38 |
Sanding screens / paper 2 pack × $12 | $24 |
Drywall primer / sealer 2 gal × $26 | $52 |
Finish paint (2 coats) 4 gal × $44 | $176 |
Paintable caulk 2 tube × $6 | $12 |
| Incl. 10% waste ($24) | $682 |
Cut list
- Wall sheets ×94×12'
- Ceiling sheets ×44×12'
- Corner bead ×58' sticks
- Per-wall sheet estimate ×4~3 sheets/wall
Before you start — do these four things
Measure twice, on site
Re-measure every dimension at the actual location and compare it to the numbers in this guide before you buy or cut anything.
Call 811 before you dig
Free, and required in most areas. Wait for the utility locates before any post hole, footing, or excavation.
Confirm permits and codes locally
Spans, footing depth, setbacks, and heights are set by your local building department — their answer overrides this guide.
Safety gear on, every step
Eye and ear protection, gloves, dust mask when cutting, and a helper for anything you can't lift alone.
Estimates only — verify measurements, prices, and codes locally. This guide is not a substitute for an engineer or your building official.
How the pros build this drywall & paint
Hang ceilings first, screws to a set depth, tape and three coats of compound with progressively wider knives, sand and prime.
2 people: hang in a day, tape and finish over 3–4 days of drying
Tools a pro shows up with
- Safety glasses
- Work gloves
- Hearing protection
- Dust mask
- Drywall lift or T-brace
- Screw gun with dimpler
- Rasp and utility knife
- 6 in, 10 in and 12 in knives
- Mud pan and hawk
- Pole sander
- Work light
The numbers pros work to
- Hanging orderCeilings first, then walls tight to the ceiling board
Wall sheets support the ceiling edge and hide the joint.
- Screw depthDimpled just below the paper, never breaking it
A broken face has no holding power and pops later.
- Screw spacingAbout 12 in on ceilings, 16 in on walls, held back from edges
Standard fastening schedule for 1/2 in board on framing.
- Finish levelLevel 4 typical for paint; Level 5 skim under gloss or raking light
Finish levels are an industry standard, not a preference.
General guidance based on common residential practice. Your local building department has the final say — estimates only, never a quote or an engineered design.

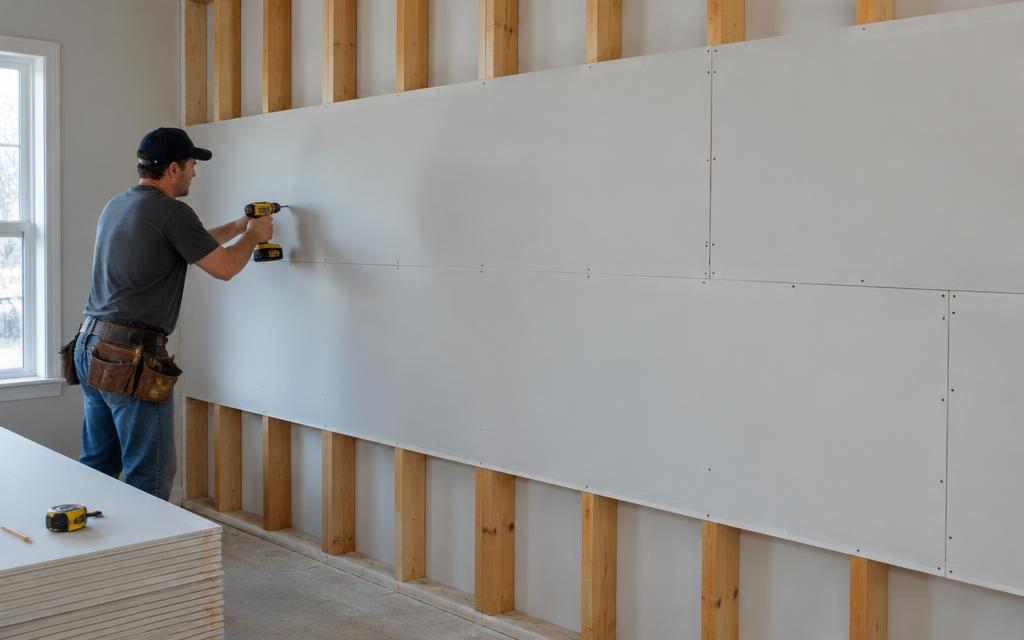

Step 1: Layout and hanging
Fewer, better-placed seams means far less finishing.
1.1 Plan sheets to minimize butt joints and never land a seam on a door or window corner.
Pro standard
Butt joints are the hardest to hide; stagger them and keep them off openings.
In plain English
Plan where the sheets land. Seams at the corner of a door will crack.
1.2 Hang tight, screw to a dimple, and cut outlets accurately.
Pro standard
Dimple without tearing paper; screws held back from the sheet edge.
In plain English
Set screws just below the surface — if the paper tears, that screw does nothing.
Before you move on: No sheet edges unsupported, no torn paper at screws, outlet cuts inside the plate cover line.

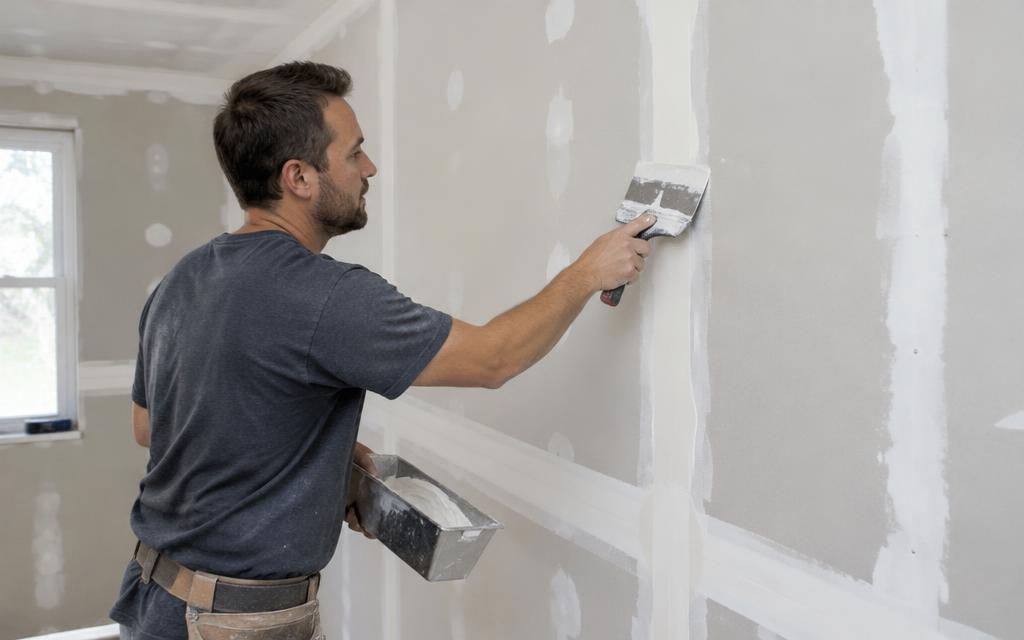

Step 2: Taping and coats
Flat walls are made in the mud, not the hanging.
2.1 Bed tape in compound, then apply two wider coats, letting each dry fully.
Pro standard
6 in bed, 10 in fill, 12 in skim — feather each edge past the last.
In plain English
Three thin coats, each one wider than the last, and let each dry. Thin coats beat one thick one every time.
2.2 Use setting-type compound for the bed coat where strength matters.
Pro standard
Hot mud is stronger and shrinks less; topping compound sands easier.
In plain English
A tougher mud underneath, an easy-sanding mud on top.
Before you move on: No ridges you can feel with a bare hand, all edges feathered out, screw heads twice-coated.
Step 3: Sand, prime, inspect
Paint magnifies everything you leave behind.
3.1 Sand lightly with a pole sander and check with a raking work light.
Pro standard
A light held near the wall reveals every ridge and pinhole.
In plain English
Shine a light sideways along the wall — that's the only reliable way to see flaws before painting.
3.2 Prime the whole surface before finish paint.
Pro standard
Primer equalizes suction between paper and compound.
In plain English
Without primer, the patched spots soak up paint differently and you can see every seam.
Before you move on: Raking light shows no shadows, all surfaces primed, dust vacuumed before painting.
What goes wrong most often
- Over-sinking screws and tearing the paper face.
- Piling on one thick coat of compound instead of three thin ones.
- Skipping primer and seeing every joint through the finish paint.
Permit checkpoints
- Pre-1978 house? Test before you sand
Sanding or demolishing painted surfaces in a home built before 1978 can release lead dust. Paid renovation work on those homes requires EPA RRP-certified practices. Test kits are cheap; remediation is not.
- Old joint compound and texture can contain asbestos
Textured ceilings and joint compound installed before the early 1980s may be asbestos-bearing. Do not sand or scrape it — have a sample tested first.
- Close the walls only after rough-in passes
If any electrical, plumbing or mechanical work happened behind these walls, the rough-in inspection has to be signed off before board goes on. Covering un-inspected work means tearing it back open.
- Fire-rated assemblies
Garage-to-house walls and ceilings, and the underside of stairs, typically require 5/8" Type X board. Attached-garage ceilings under living space are usually a full one-hour assembly. This calculator prices 1/2" board — swap it where rating is required.
- Wet areas need the right board
Bathrooms need moisture-resistant board, and tiled shower surrounds need cement board or a tested membrane — not paper-faced drywall of any colour.
- Ventilate while priming and painting
You'll be spreading roughly 3 coats across this room. Open a window and run a fan, even with low-VOC paint.
Rules vary by city and county — always confirm with your local building department. Estimates only, not a permit determination.
